MS GAS CHEONAN FACTORY - GAS SUPPLY BASE IN THE CENTRAL REGION:
HELIUM(ISO) SUPPLYING, FOCUSING ON SPECIALTY GASES MANUFACTURING
GAS PURITY ANALYSIS, IMPURITY CONTENT QUALITATIVE & QUANTITATIVE ANALYSIS /
FLAMMABILITY, TOXICITY, CORROSIVE GAS PRETREATMENT AND ANALYSIS
CLEAN ROOM CLASS 100, 1000 : CLEAN ROOM FACILITIES TO BLOCK EXTERNAL CONTAMINANTS,
ICP-MS CLEAN BOOTH IN OPERATION FOR PRE-TREATMENT & TRACE HEAVY METAL ANALYSIS
DICHLOROSILANE REFILL SYSTEM: FULLY AUTOMATED OPERATING FACILITY
FOR SYSTEMATIC QUALITY · SAFETY MANAGEMENT
LARGE-SCALE TECHNICAL SERVICE PROVIDER : LNG TANK PURGE SERVICE
(N2 PURGE, COLD TEST, PRE-COOL DOWN, KOGAS MAIN PIPE HIGH PRESSURE AIRTIGHT TEST, ETC.)
CRYOGENIC TANK (CAPACITY:6.8m³ ~ 20,000m³)
MANUFACTURING & FIELD INSTALLATION
INTRODUCTION
Established in 1974, MS GAS is a manufacturer and
distributor of industrial gases and specialty gases.
With more than 45 years of operation, MS GAS has established
a nationwide manufacturing · distribution network in South Korea.
In addition, MS GAS has engineering · manufacturing capabilities
to provide cryogenic gas tanks to gas-related components.
To meet ever-changing customer gas needs,
MS GAS is committed to ongoing research and development
in gas products and services.
GAS
Industrial Gases
DOWNLOADProducts
Oxygen : O2
Nitrogen : N2
Argon : Ar
Hydrogen : H2
Carbon Dioxide : CO2
Acetylene : C2H2
Helium : He
Ammonia : NH3
Nitrous Oxide : N2O
High Purity Gases ( O2, H2 )
Mixed Gases ( for cutting / welding )
Others
| Delivery Method | Storage Tank (in tons) : 4.9 Tons / 10 Tons / 15 Tons / 20 Tons / 30 Tons / 40 Tons / 50 Tons / Others |
| Trasportation Equipment | Tank Lorry / Trailer |
| Supply Volume | 130,000 Tons Per Year |
| Package | Supply Method : LGC, cylinder (40L, 47L, 58L, etc.) Transport : Trailer, Truck |
Fuel Gases
Products
Propane : C3H8
Flamex
Ethane : C2H６
N-Butane : C4H10
ISO Butane : C4H10
Propane : C3H8
Methane : CH4
Others
| Delivery Method | Storage Tank (in tons) : 0.5 Tons / 1.0 Tons / 1.9 Tons / 2.9 Tons / 4.9 Tons / 10 Tons / 15 Tons / 20 Tons / 50 Tons / Others |
| Trasportation Equipment | Tank Lorry / Trailer / Bulk Lorry / Truck |
| Supply Capacity | 50,000 Tons Per Year |
| Technical Support | Purge: Purge Gas, Airtightness Test, Gas Replacemnt Work, etc. Safety Management Agency & Facility Safety Diagnosis Gas Equipment Consulting and Engineering Review Agency |
Specialty Gases
Products
Semiconductor Gases
HCI, SiHCl3 , SiH2Cl2
CF4 , C2F6 , CHF3 , C3F6 , C4F8
PH3 , AsH3
BCl3
Cl2
NO2
SF6 ( Sulfur Heaxafluoride )
NH3 ( Ammonia )
HBr ( Hydrogen Bromide )
H2S
SiCl4
Mixed Gases
GeH4 ( Germane Mixtures )
B2H6 ( Diborane Mixtures )
SiH4 ( Silane Mixtures )
PH3 ( Phosphine Mixtures )
HCl ( Hydrogen Chloride Mixtures )
Electornics Gases
TCS
DCS
Chemical Precusor ( CVD/ALD )
Chemical basic material
STC
CH3Cl
MTS
DMA
| Technology Research Center | Analysis Equipment : GC PDD, ICP-MS, Moisture Analyzer, Trace Oxygen Analyzer, THC |
| Cleanroom : 75m² |
Standard Gases
Products
Standard Gases , Multicomponent Gas Mixtures ( Ultra Prceision Weighing )
For measuring Greenhouse Gases
For Environmental Measurement
For Process Control
For LASER Generation ( medical, semiconductor )
For Manufacturing Processes ( sensor measurement, etc. )
Specialized in Product Manufacturing · Product Analysis
EQUIPMENT
Gas Tank
Cryogenic Gas Tank
Used to store cryogenic liquids such as LNG, liquid nitrogen,
liquid argon, and liquid oxygen. CE tanks are designed · built
according to international standards.
| Capacity (Ton / hr) | 5 ~ 150m³ (quantity basis) |
| Design Pressure | 1.0 ~ 4.0Mpa |
| Design Temperature | -196℃ ~ +40℃ |
| NER | 0.03% |
Liquid Nitrogen Bulk Storage Tank
| Water Volume | 13,000 m³ |
| Storage Volume | 11,700 m³ |
| Fluid | L-N2 |
| Ner (%LN2 per day) | 0.126% |
| MAWP | 5psi (0.345bar.g) |
| Size (mm) | Inner Tank : ID 23,800 x H 27.218 |
| Outer Tank : ID 26,000 x H 29,340 | |
| Shell Material | Inner Tank : A240-304 |
| Outer Tank : SS400 | |
| Empty Weight | 1,099Ton |
| Code | API 620 Appendix L,Q / KGS AC 111 |
| Customer | Praxair Korea |
| Installation Date | Kyunggido Yongin / Oct., 2020 |
HP Tank (High Pressure Tank)
| Water Volume | 450.028 m³ |
| Design Pressure | 1.0Mpa |
| Fluid | L-N2 |
| Size (mm) | Inner Tank : ID 4,500 x TL 26,796 |
| Outer Tank : ID 5,000 x TL 28,574 | |
| Shell Material | Inner Tank : A240-304 |
| Outer Tank : SA36 | |
| Empty Weight | 170Ton |
| Code | ASME SEC VIII DIV.1 / KGS AC 111 |
| Customer | Praxair Korea |
| Installation Date | Daesan Hyundai Oilbank / 2017.12.14 |
Spherical Storage Tank
| Water Volume | 3,000 m³ |
| Storage Volume | 2326.7 m³ |
| Fluid | L-O2 |
| Ner (%LN2 per day) | 0.126% |
| MAWP | 1.47Mpa |
| Size (mm) | ID 17,900 x H 20,180 |
| Shell Material | A537-CL2 |
| Empty Weight | 430Ton |
| Code | ASME SEC.VIII DIV.1 |
Liquid Natural Gas Tank
| Volume | 232.6 m³* |
| Design Pressure | 0.4Mpa |
| Fluid | LNG |
| Size (mm) | Inner Tank : ID 4,020 x TL 16,986 |
| Outer Tank : ID 45,020 x TL 18,288 | |
| Shell Material | Inner Tank : A240-304 |
| Outer Tank : A516-70 | |
| Empty Weight | 70Ton |
| Code | ASME SEC VIII DIV.1 / KGS AC 111 |
| Customer | Korea Gas Technology Corporation |
| Installation Date | Gyeonggido Pyeongtaek / 2018.10.05 |
Cold Stretching Tank
Plastic deformation occurs when Austenitic Stainless Steel materials are removed after applying pressure above the yield point. When pressure is applied again, a new yield point and allowable stress value of higher stress are generated to reduce the thickness of the steel plate which is used for cold stretched tanks.
| Volume | 15m3* |
| Design Pressure | 2.0Mpa |
| Fluid | L-N2 |
| Size (mm) | Inner Tank : ID 1,700 x TL 6,042 |
| Outer Tank : ID 2,450 x TL 6,808 | |
| Shell Material | Inner Tank : A240-304 |
| Outer Tank : A283-C | |
| Empty Weight | 12.8Ton |
| Code | ASME SEC VIII DIV.1 / KGS AC 111 |
| Customer | MS GAS |
| Installation Date | Gyeonggido Pyeongtaek / 2019.04.05 |
Super Insulation Tank
Compared to PERLITE type, excellent insulation performance, loading capacity and fuel economy.
| Volume | 23,573 L |
| Design Pressure | 0.4Mpa |
| Fluid | L-N2 |
| Size (mm) | Inner Tank : ID 2,200 x TL 5,048 |
| Outer Tank : ID 2,770 x TL 5,596 | |
| Shell Material | Inner Tank : A240-304 |
| Outer Tank : SS400 | |
| Empty Weight | 6,846kg |
| Code | KGS AC 113 |
| Customer | MS GAS |
| Manufactured Date | 2018.12. |
Pressure Vessel & Storage Tank
To meet diverse customer gas requirements, various types of pressure vessels and storage tanks are engineered and manufactured.
Capacity : 10L ~ 5m³
Pressure : 1.0MPa
Materials : A283C or A516-70
Customer : KOGAS
Capacity : 215m³
Pressure : 2.18MPa
Materials : A516-70
Size : ID4m*18m
Customer : Youngheung Tｈermal Power Plant
Capacity : 110m³
Pressure : 3.0MPa
Materials : SPV490
Size : ID4m*18m
Customer : Hyundai Hysco
| Capacity (Ton / hr) | 5 ~ 300m³ (quantity basis) |
| Design Pressure | 1.0 ~ 4.0Mpa |
| Design Temperature | -5℃ ~ +2000℃ |
| Design Code | ASME U, CE PED |
| NER | AIR / H2 / LPG / NH3 / He / Others |
VAPORIZER
3 TYPES
A vaporizer is a device that changes liquid to gas and maintains gas temperature wihin the proper range.
| Electric Vaporizer | Convectional Vaporizer | Warm Steam Vaporizer | |
|---|---|---|---|
| Material | SUS304TP | A6063 T5 (Aluminum) | Internal Pressure (Coil) : SUS304TP |
| Design Pressure | LPG | LPG, L-N2, L-Ar, L-O2, L-CO2 | NH₃ |
| Pressure | 1.0 ~ 1.8MPa | 1.0 ~ 20MPa | 1.0 ~ 2.2MPa |
| Temp | -5 ~ 100℃ | -196 ~ 40℃ | -20 ~ 180℃ |
| Capacity | 30kg/hr / 50kg/hr / 100kg/hr / 150kg/hr / 200kg/hr / 300kg/hr / 400kg/hr / 500kg/hr |
10 ~ 10,000m³/hr | 50kg/hr ~ 500kg/hr |
| Electric Vaporizer | |
|---|---|
| Material | SUS304TP |
| Design Pressure | LPG |
| Pressure | 1.0 ~ 1.8MPa |
| Temp | -5 ~ 100℃ |
| Capacity | 30kg/hr / 50kg/hr / 100kg/hr / 150kg/hr / 200kg/hr / 300kg/hr / 400kg/hr / 500kg/hr |
| Convectional Vaporizer | |
|---|---|
| Material | A6063 T5 (Aluminum) |
| Design Pressure | LPG, L-N2, L-Ar, L-O2, L-CO2 |
| Pressure | 1.0 ~ 20MPa |
| Temp | -196 ~ 40℃ |
| Capacity | 10 ~ 10,000m³/hr |
| Warm Steam Vaporizer | |
|---|---|
| Material | Internal Pressure (Coil) : SUS304TP |
| Design Pressure | NH₃ |
| Pressure | 1.0 ~ 2.2MPa |
| Temp | -20 ~ 180℃ |
| Capacity | 50kg/hr ~ 500kg/hr |
Submerged Combustion Vaporizer
| Volume | 46,420 L |
| Design Pressure | 12.1Mpa |
| Heat Transfer Duty | 31.72MW |
| Fluid | LNG |
| Size (mm) | 6,815 x 2,710 x 3,285 |
| TUBE : SA213-304/304L | |
| Shell Material | WEAR : A240-304/304L |
| Empty Weight | 9,150kg |
| Code | ASME SEC VIII.DIV.I & KGS AC 113 |
| Customer | Seles-Linde (Boryeong LNG Terminal) |
| Manufactured Date | 2015.09. |
Valve

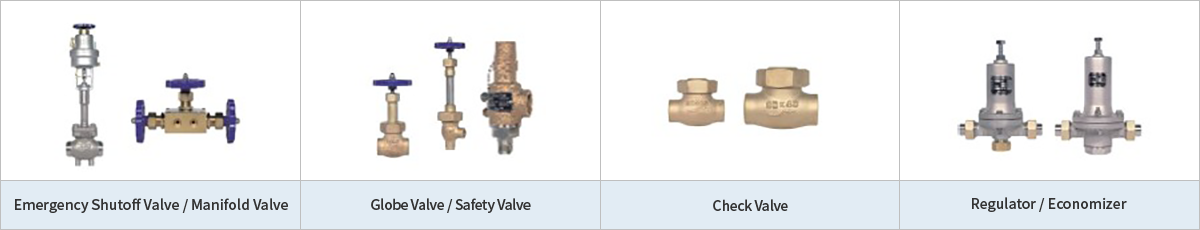

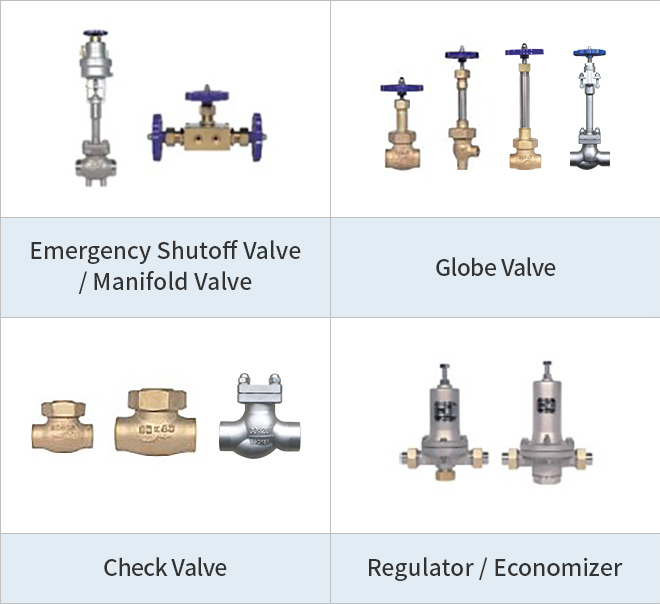

Cryogenic Valve
LNG Forged Valve ( Forged Globe / Check Valve ) ※ Official Vendor for Korea Gas Corporation
Cryogenic Tank Valve ( Cryogenic Globe / Check Valve )
Piping Globe Valve ( Long/short ) , Angle Glove Valve
Emergency Shutoff Valve ( E.S.V ) , Vacuum Sensor Valve , Vacuum Exhaust Valve , Check Valve
Regulator , Economizer
Manifold Valve , Divert Valve

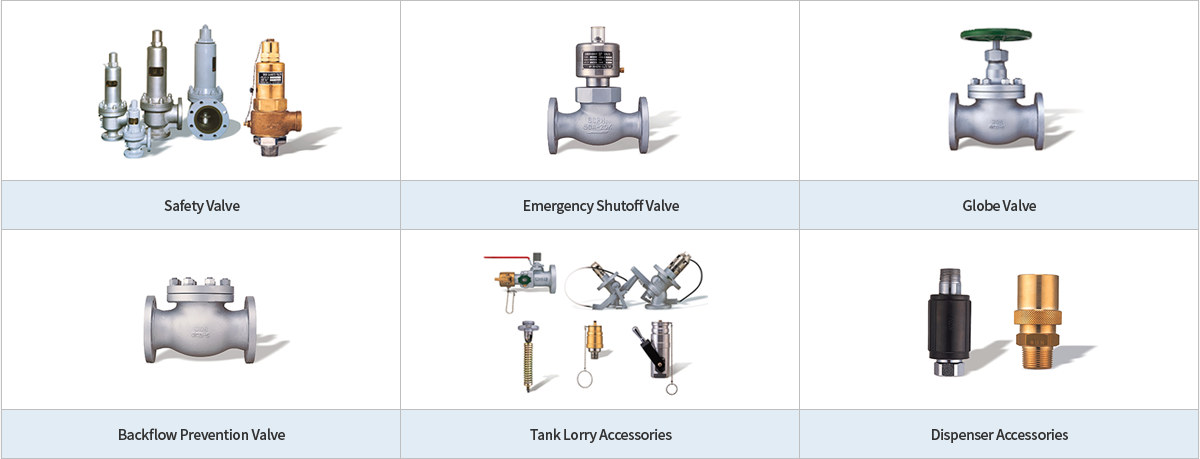

Safety Valve
LPG Valve

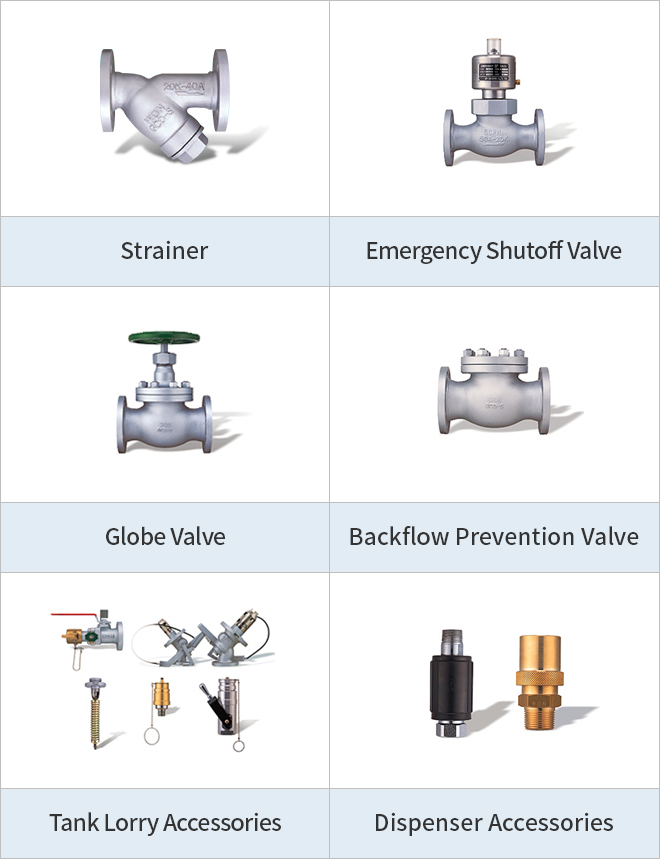

Strainer
E.S.V
Globe Valve
Check Valve
By-pass Relief Valve
Angle-type Ball Check Valve
Y Valve
Tank Lorry Ball Valve
Tank Lorry Check Valve
Tank Lorry Safety Valve
Tank Lorry Coupling

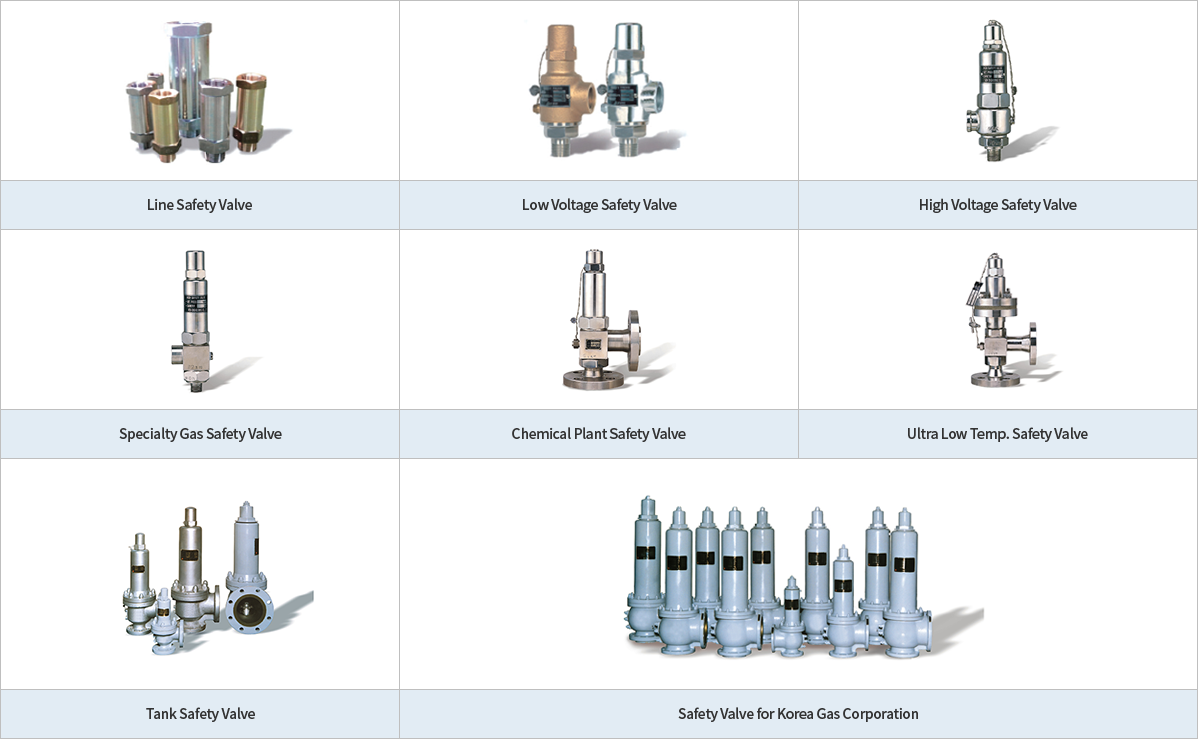

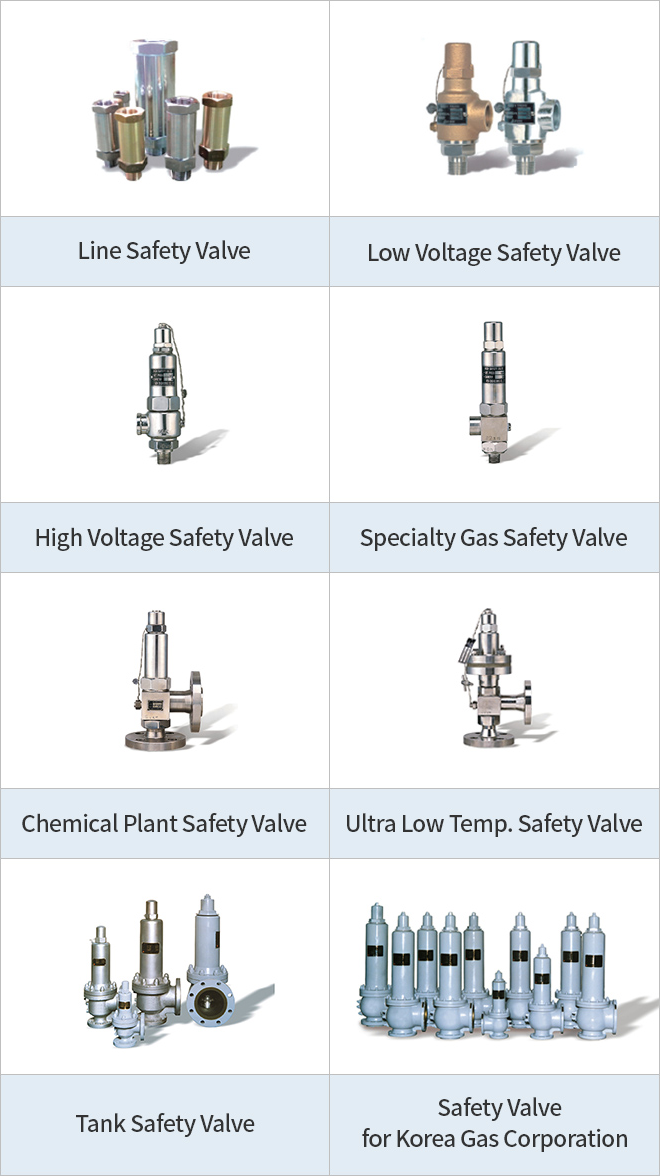

Safety Valve
Inflammable Gases ( Propane, Butane, Natural Gas , Ethylene )
Toxic Gases ( Ammonia , Chlorine )
Industrial Gases
Specialty Gases ( Hydrogen , Helium , Freon )
Chemical Plant Safety Valve
Other Custom-made Safety Valve
Dispenser

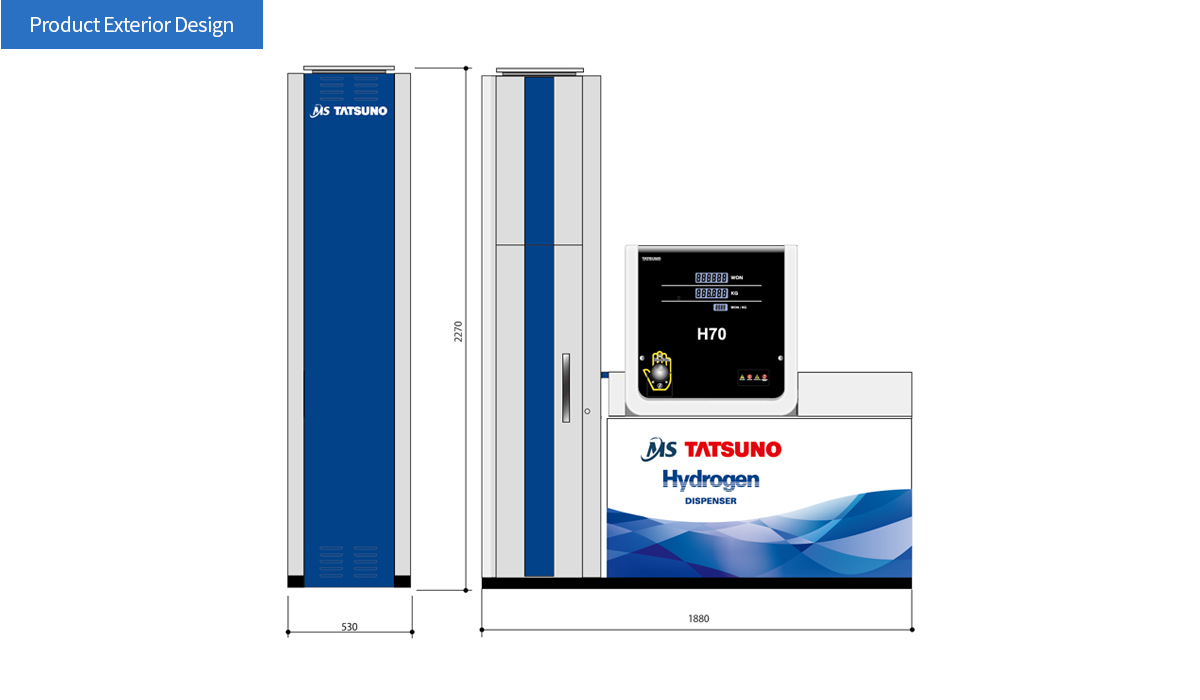

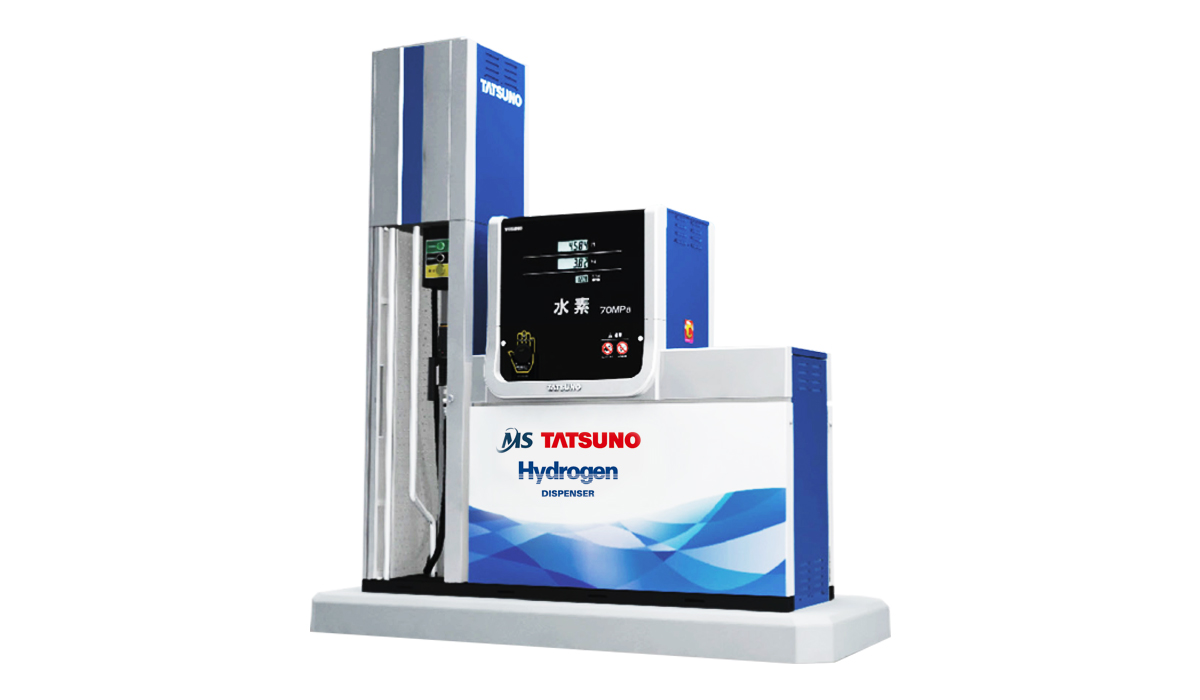

Hydrogen Dispenser
Thru technical cooperation with Tatsuno ( 70% m/s in hydrogen dispenser in Japan ),
aim to contribute to Korea's hydrogen ( gas ) industry thru manufacturing and supplying quality hydrogen dispensers in Korea.
Hydrogen Dispenser Highlights
Maximum Compression Charging of 87.5MPa
Compact design thru the use of micro-channel heat exchanger
Utilization of Large Display
Onsite/Offsite Application
Operational at low temperature of minus 40 celsius

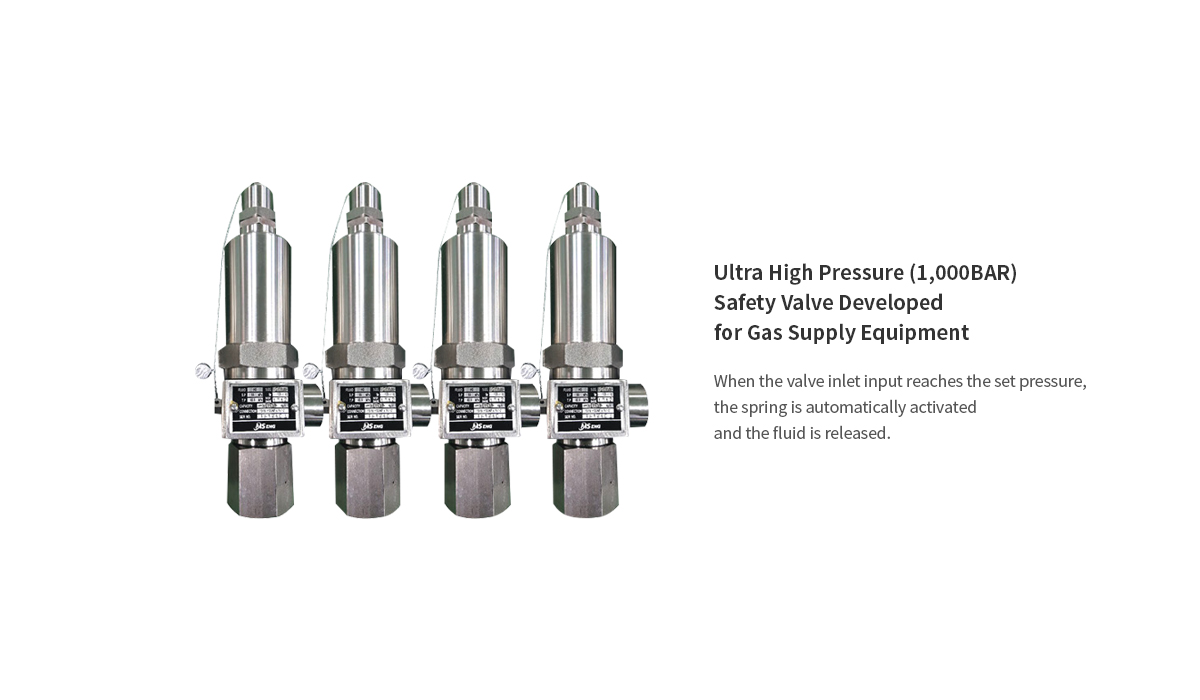

High-pressure Safety Valve: 1,000bar ( 100MPa )
ASME U stamp & ultra micro mass flow meter (1.3 liter , 4.5 kg ) KGS certified
Explosion Proof N435 Certification ( KCS ), precision weighing accuracy up to ±0.5%D
LPG Dispenser
-
Accurate all seasons GAIN management
The combination of state-of-the-art transcription systems and superior equipment prevents inventory loss, ensuring the most accurate 365 days of inventory management of the charging station.
-
PRE-SET function
pratical utilize various functions enabling convenient, quick operation business.
-
4-Piston Flow Meter
Maintains high accuracy weighing tolerance and boasts low noise and semi-permanent life by the use of Soft Seat and STS material.
-
Outstanding Weighing Accuracy
Combination of Fixed Flow Meter and Automatice Temperature Compensator enables Outstanding Weighing Accuracy within allowed legal tolerance of ±0.25% ~ ±0.5%
-
One Touch ON/OFF
Compared to a mechanical switch, the use of an electonical switch enables the control of ON/OFF function in one operation during charging.
-
POS Available for Operation
Includes an interface for the easy POS installation, enables convenient inventory management via POS program.

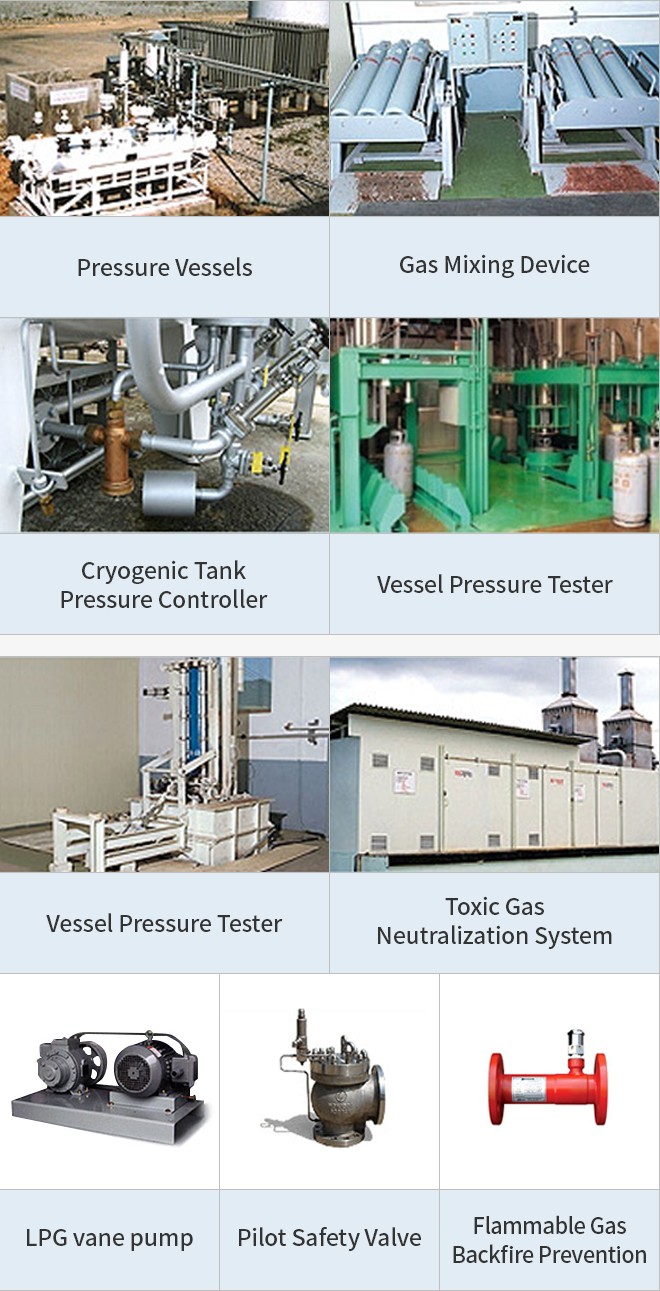

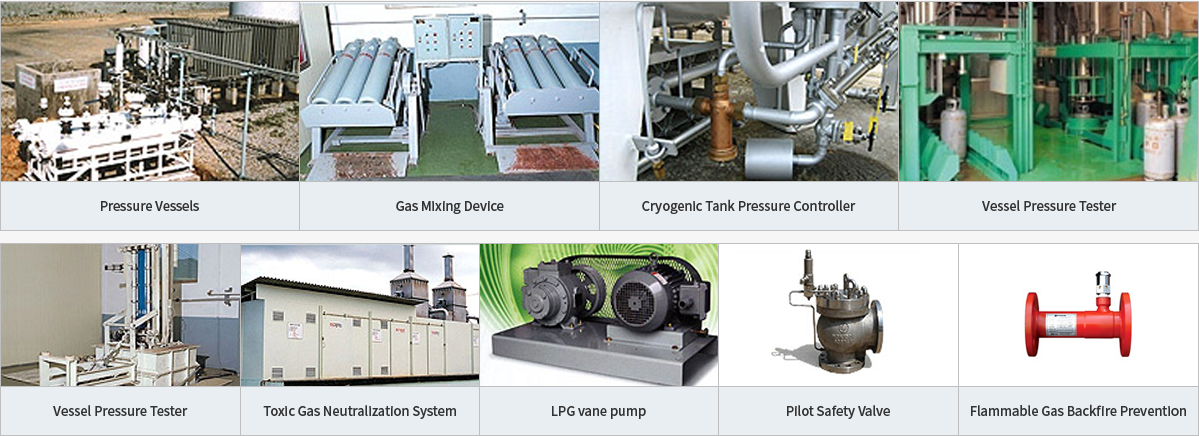

Other Gas Device
Pressure Vessels
Cryogenic Tank Pressure Controller
Inner Vessel Surface Treatment
Toxic Gas Neutralization System
Flammable Gas Backfire Prevention
Gas Mixing Device
Vessel Pressure Tester
Loading Arm for Receiving Base
Natural Gas Filter
Other Customized Products
※ Some products and services shown available via our affilated companies.
SERVICES
GAS ANALYSIS SERVICE
GAS PURGE SERVICE
Gas piping, gas·chemical tank purge service
IMPORT & EXPORT SERVICE
Import and export services related to gas and gas equipment
※ Some products and services shown available via our affilated companies.
